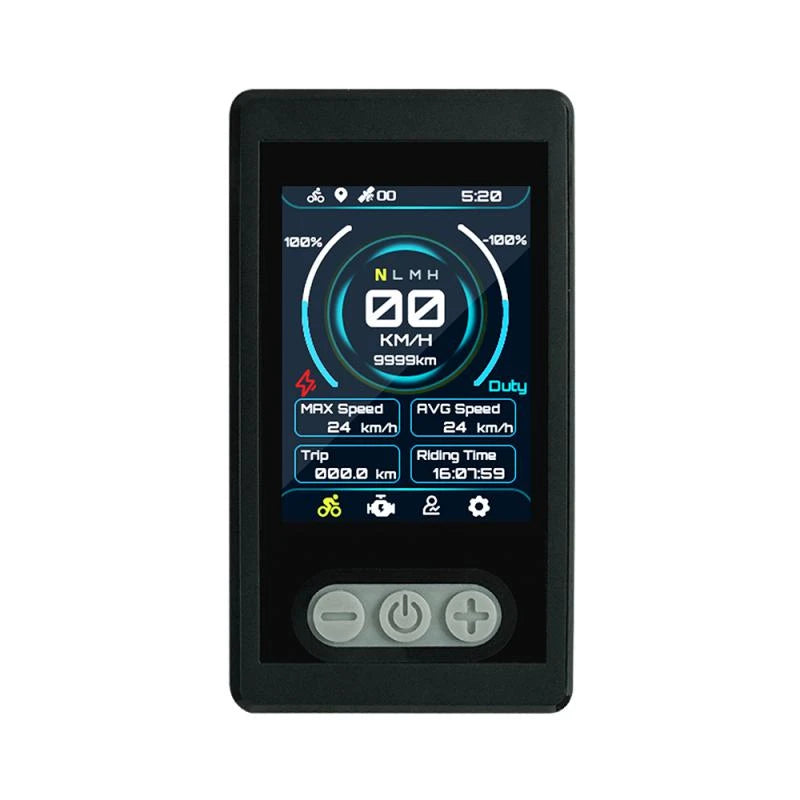

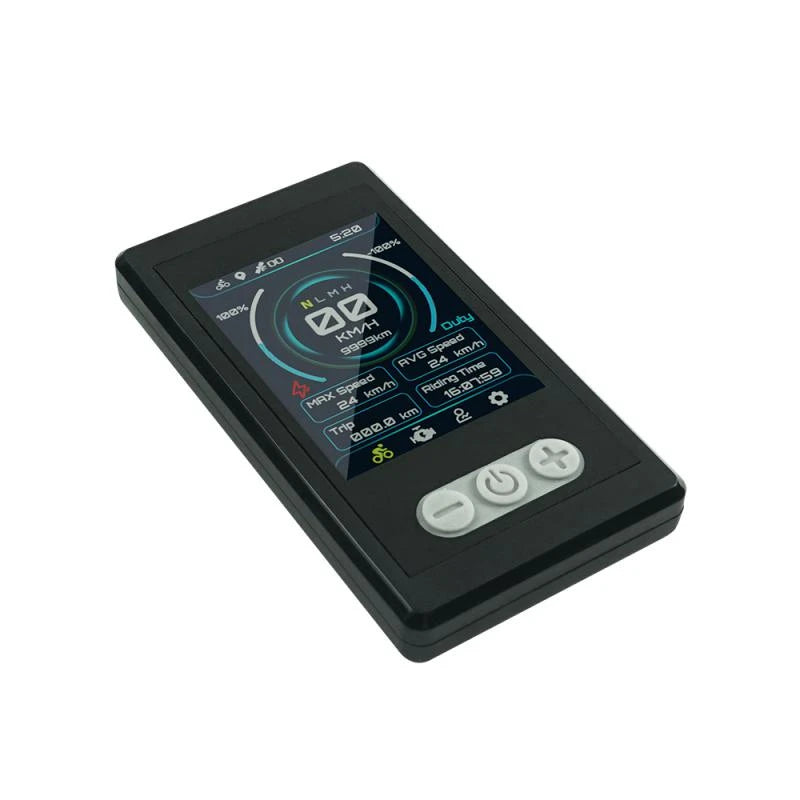

Ebike Display Ebike TFT Color Disply V2.0 Advanced Display with GPS Function IP65 Waterproof for Ebike

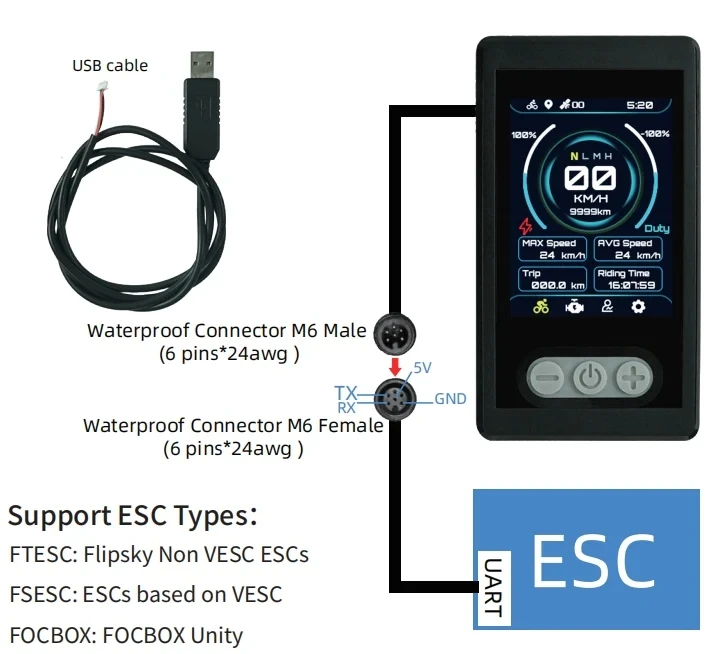

Support Esc Types:

FTESC: Flipsky Non VESC ESCs

FSESC: ESCs based on VESC

FOCBOX: FOCBOX Unity

Specification:

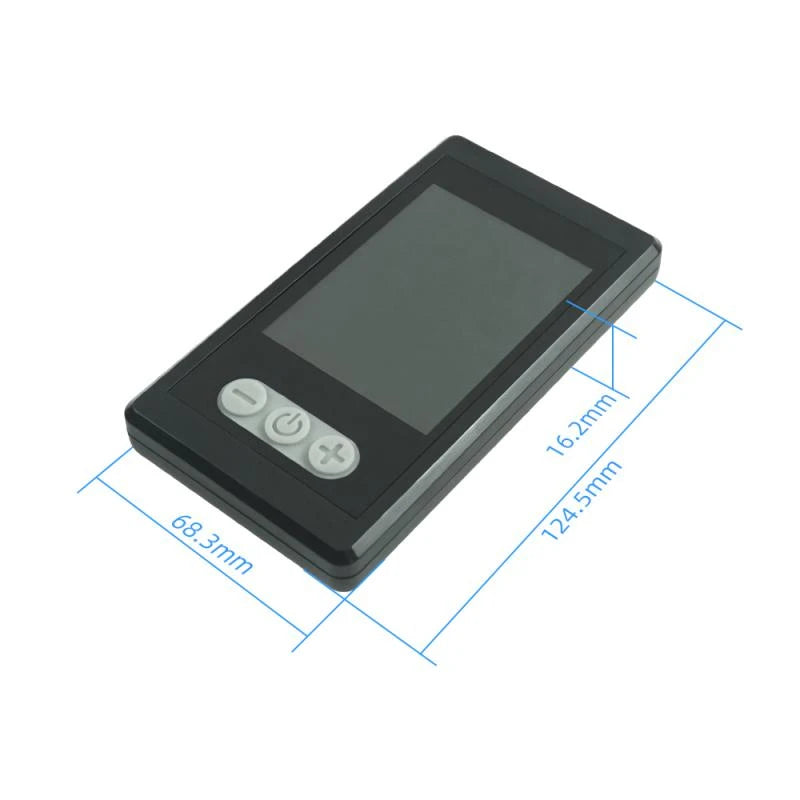

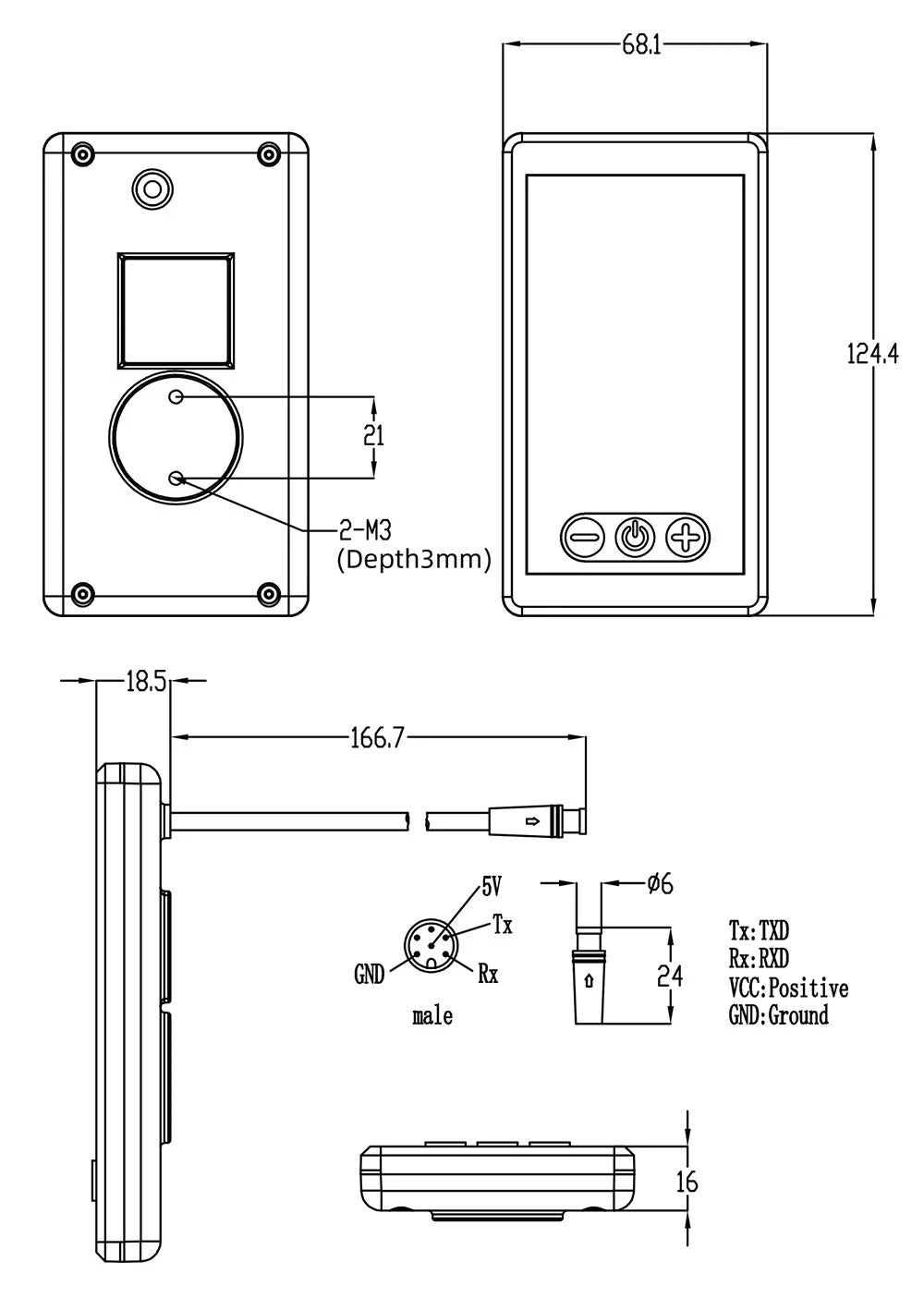

Dimension: L*W*H (mm): 124.4*68.1*18.5(mm)

Display Size: 3.2

Display Type: TFT

Display Color: RGB

Display Image Resolution: 240*320

Voltage/Current: 5V/500mA

Working Temperature: -20+70

Storage Temperature: -30+70

IP Rate: IP65

Weight: 116g

Communication Mode: UART

New Features

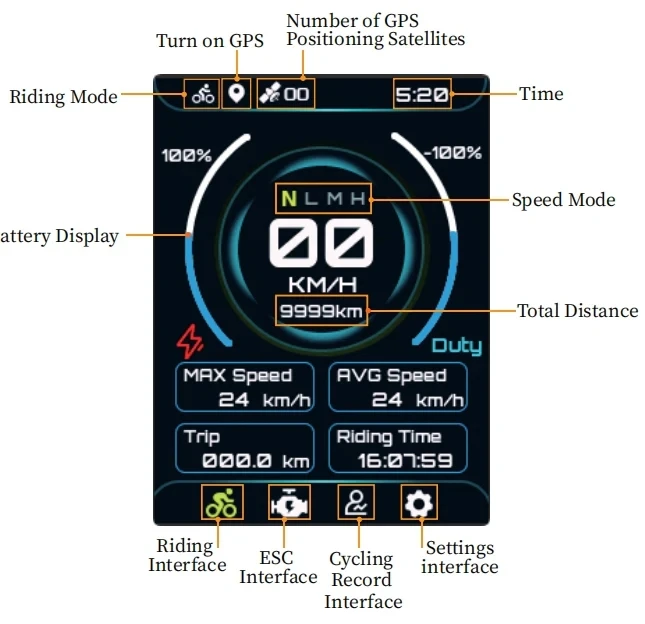

1. New UI design, upgraded visual experience
   Adopting modern technology style interface, the overall visual sense of technology and sophistication.
   Clearer graphical layout, more in line with contemporary user aesthetics, to enhance the cycling experience.

2. Rich cycling record data display
   New detailed cycling record display helps users to
   fully understand the cycling status and energy efficiency performance:
   Speed
   Mileage
   Riding time
   Power output and energy recovery
   Average energy consumption (Wh/km)
   Maximum temperature of the ESC and maximum temperature of the motor
   Maximum power during the cycling process

3. GPS automatic time calibration function
   Built-in GPS module automatically calibrates the date and time, manually set a
   time zone, synchronized while riding.

4. Multi-language support, suitable for users in different regions
   Supports Chinese, English, Russian trilingual display
   Users can switch with one key according to their language habits, and the operation
   is barrier-free.

5. Real-time data to assist cycling management
   Real-time display of cycling and ESC data, providing users with a scientific basis to optimize cycling habits and efficient use

V2.0 compared with the old version V1.0:

• Self-designed U1 and program framework, which is clearly differentiated from VESC displays on the market.

• After setting the time zone once, every time you go outdoors to get the GPS signal will be calibrated once, the time and its accuracy.


• Support Chinese, English and Russian language display, which is favorable for domestic and Russian market.


• Enhancement of human-computer interaction in cycling record display adds ESC energy consumption display and maximum data display.
